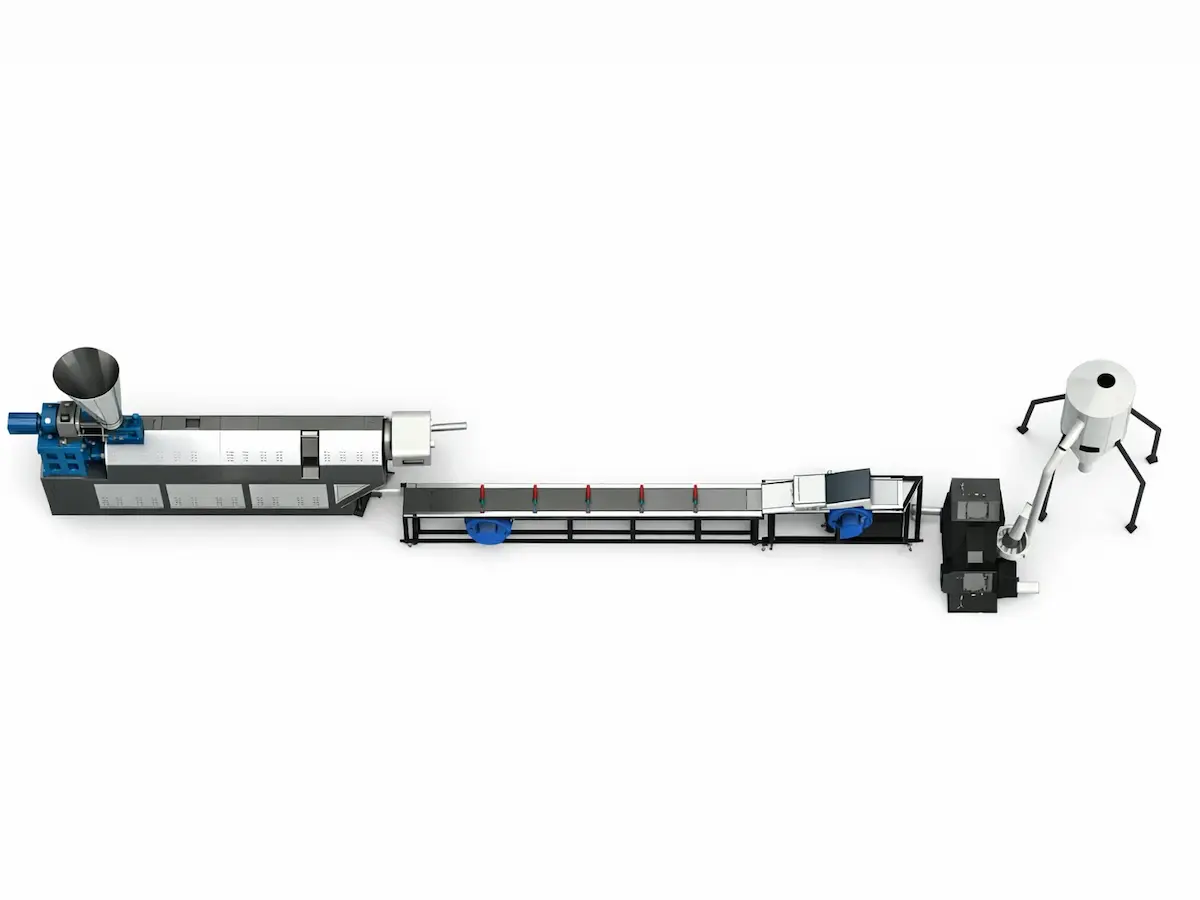

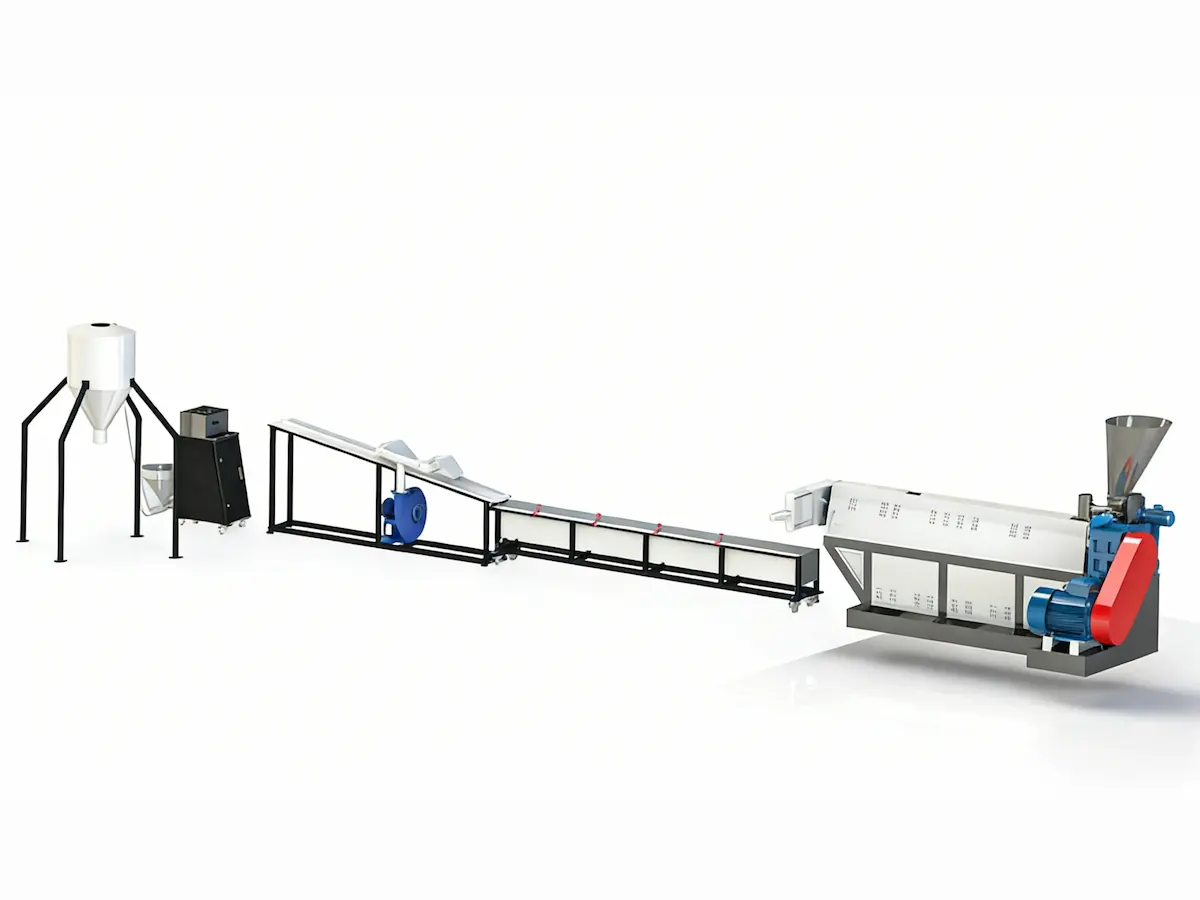

Rigid Plastic Single-Stage Pelletizing Line
Complete pelletizing system for bulk rigid plastics with stable output. Designed for HDPE, PP and other rigid plastic recycling applications. Single-stage extrusion with strand or water-ring pelletizer delivers uniform pellets for injection molding and extrusion.
Materials Available for Processing
HDPE
PP
ABS / PS
Rigid PelletsParameter Overview
| Model | Max. Output (kg/h) | Main Motor (kW) | Screw Diameter (mm) | Pelletizing Type | Voltage |
|---|---|---|---|---|---|
| RPS-80 | 200–350 | 55 | 80 | Strand / Water Ring | 380V 50Hz |
| RPS-100 | 350–550 | 90 | 100 | Strand / Water Ring | 380V 50Hz |
| RPS-120 | 550–800 | 132 | 120 | Strand / Water Ring | 380V 50Hz |
| RPS-140 | 800–1200 | 160 | 140 | Strand / Water Ring | 380V 50Hz |
| RPS-160 | 1200–1500 | 200 | 160 | Strand / Water Ring | 380V 50Hz |
* Specifications may vary based on raw material condition and customer requirements.
Brief Description of Pelletizing Process
Pelletizing Line Detail Photos
Dosing Feeder
Screw Feeder
Extruder
Meshless Drain Filter
Screen Changer Filter
Water Ring Cutter
Vertical Dehydrator
Control Cabinet
Complete Rigid Plastic Pelletizing Line in Operation
Watch our rigid plastic single-stage pelletizing line running at full capacity. See how we process HDPE, PP and other rigid plastics into stable, high-quality pellets.
