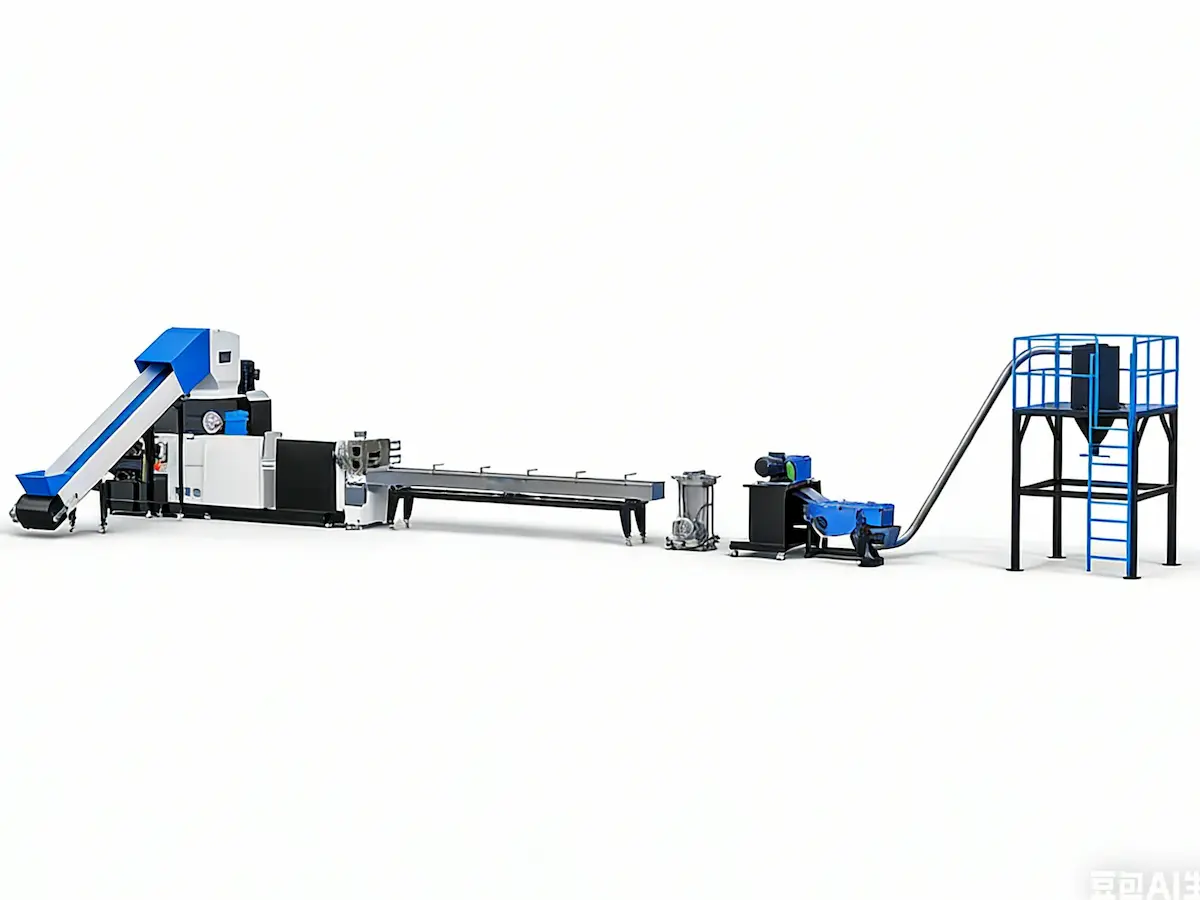

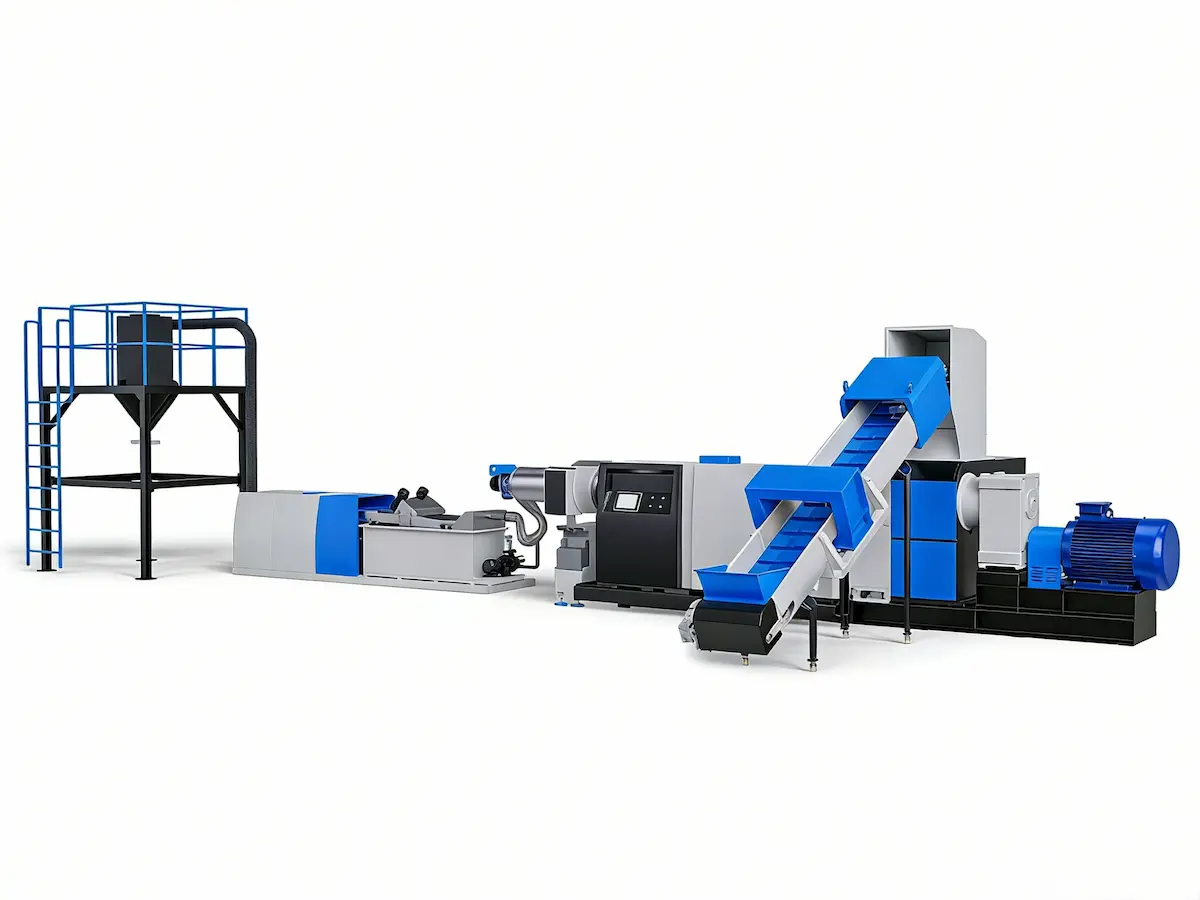

Shredding & In-Plant Recycling Pelletizing Line
Classic strand cutting system for clean, uniform pellet output. Ideal for PE, PP and other thermoplastics in recycling and in-plant applications. The strand pelletizer produces cylindrical pellets with excellent surface finish for downstream extrusion and injection molding.
Materials Available for Processing
PE
PP
Thermoplastics
Strand PelletsParameter Overview
| Model | Max. Output (kg/h) | Main Motor (kW) | Screw Diameter (mm) | Cutting Type | Voltage |
|---|---|---|---|---|---|
| SIP-65 | 100–200 | 37 | 65 | Strand | 380V 50Hz |
| SIP-80 | 200–350 | 55 | 80 | Strand | 380V 50Hz |
| SIP-100 | 350–550 | 90 | 100 | Strand | 380V 50Hz |
| SIP-120 | 550–800 | 132 | 120 | Strand | 380V 50Hz |
| SIP-140 | 800–1200 | 160 | 140 | Strand | 380V 50Hz |
* Specifications may vary based on raw material condition and customer requirements.
Brief Description of Pelletizing Process
Pelletizing Line Detail Photos
Screw Feeder
Parallel Twin Screw Extruder
Meshless Drain Filter
Screen Changer Filter
Cutting Pelletizing
Water Cooling System
Vertical Dehydrator
Silo
Control Cabinet
Complete Strand Pelletizing Line in Operation
Watch our strand pelletizing line running at full capacity. See how we process PE, PP and thermoplastics into clean, uniform pellets for in-plant and recycling applications.
