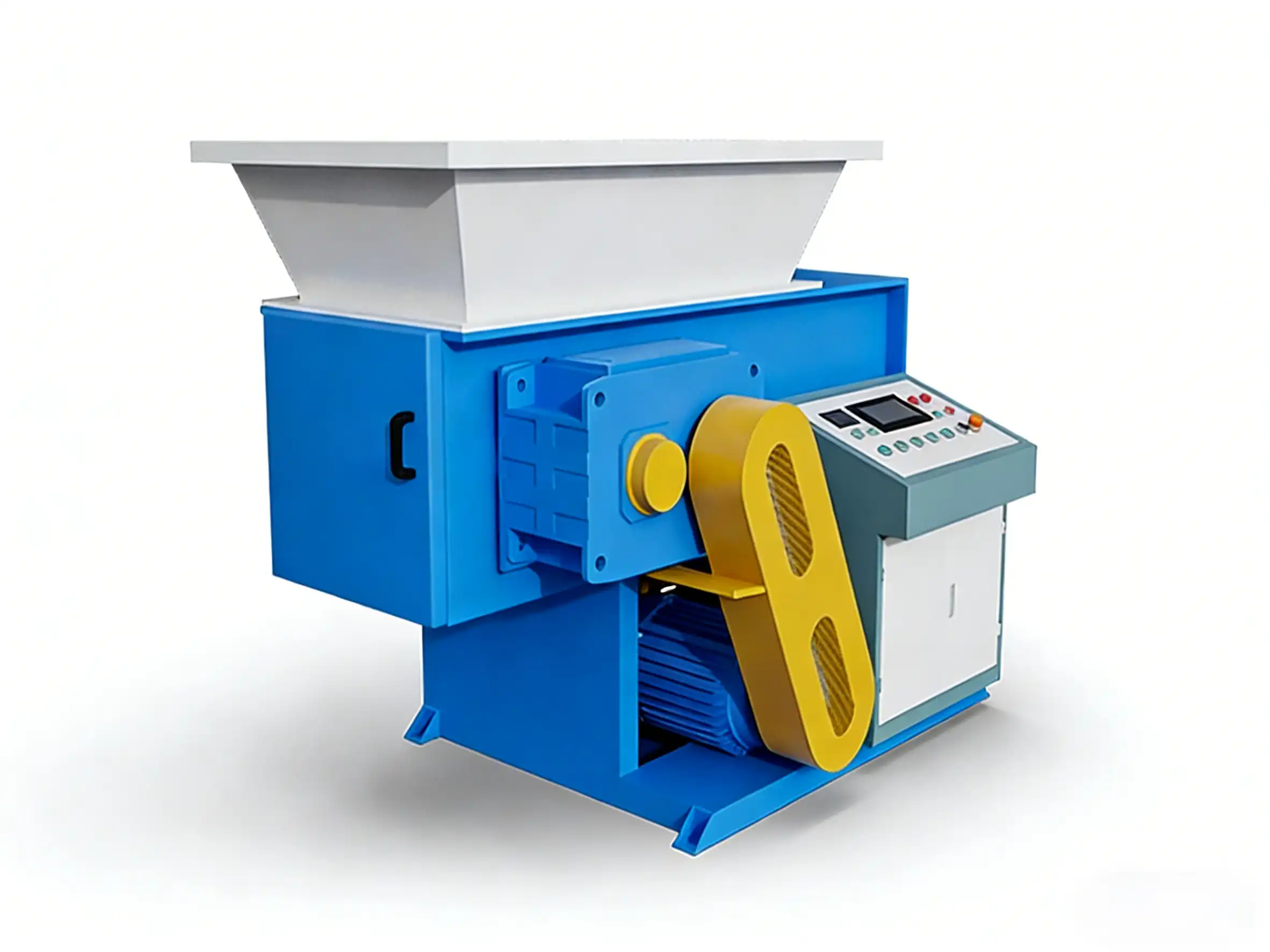

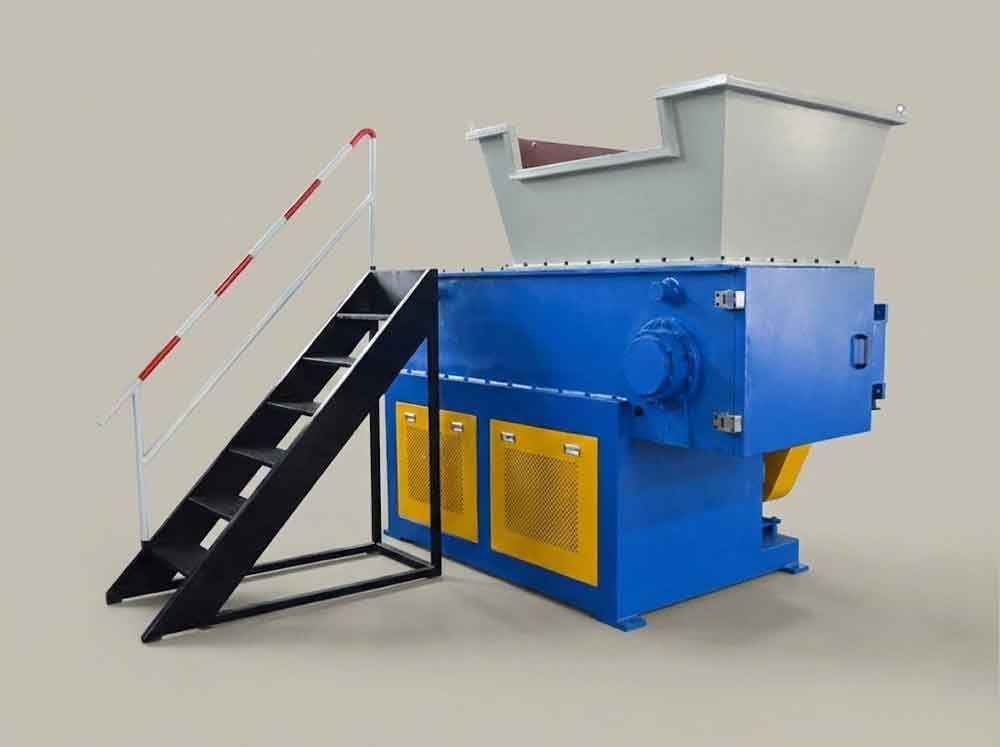

Single Shaft Shredder for Plastic Recycling
Our single shaft shredder delivers flexible size reduction with precise control for uniform output. The robust rotor design and adjustable screen ensure consistent particle size, ideal for washing lines, extrusion and pelletizing systems.
Product Overview
Applications include rigid plastics (HDPE, PP, PVC), film scrap, purgings and in-plant recycling. Low-speed, high-torque operation reduces wear and noise while maintaining throughput. The machine is often used as the first stage before washing or granulating.
Gangsu single shaft shredders are designed for 24/7 operation with easy maintenance, reversible blades and durable construction. Options include hopper design, conveyor integration and custom screen sizes.
Application & Raw Materials
Mixed Plastic Waste
Rigid PP / HDPE
PE / PP Film
PET Bottles & Containers
Key Features
Precise Output Control
Adjustable screen and blade gap for uniform particle size suited to downstream washing or extrusion.
Low-Speed High-Torque
Reduces wear, noise and power consumption while maintaining reliable throughput.
Reversible Blades
Extend blade life with reversible cutting edges; easy maintenance and replacement.
Robust Construction
Heavy-duty rotor and housing for 24/7 operation in demanding recycling environments.
Flexible Feeding
Handles various input sizes from purgings to bulky items; hopper and conveyor options.
Easy Integration
Designed to connect with washing lines, granulators and pelletizing systems.
Technical Parameters
| Model | Motor Power (kW) | Rotor Diameter (mm) | Screen Hole (mm) | Capacity (kg/h) | Weight (kg) |
|---|---|---|---|---|---|
| HS-600 | 15 | 300 | 12–25 | 80–150 | ~1200 |
| HS-800 | 22 | 400 | 12–25 | 150–300 | ~1800 |
| HS-1000 | 30 | 500 | 15–30 | 250–450 | ~2500 |
| HS-1200 | 37 | 600 | 15–30 | 350–600 | ~3200 |
| HS-1500 | 45 | 750 | 20–40 | 500–800 | ~4200 |
* Parameters vary with material and configuration. Contact us for a detailed proposal.
Machine Details

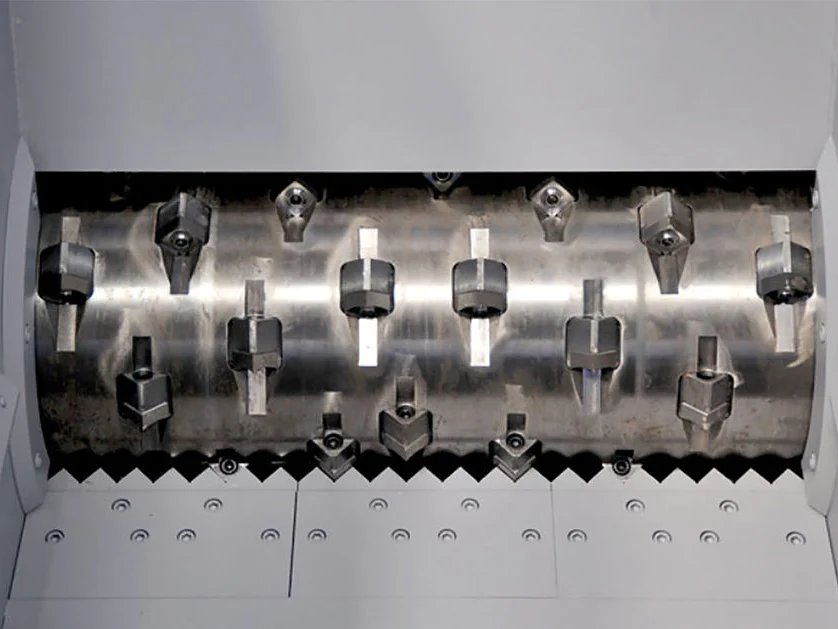

Heavy-duty Rotor
Forged or fabricated rotor with precision-mounted blades for consistent shredding and long service life.

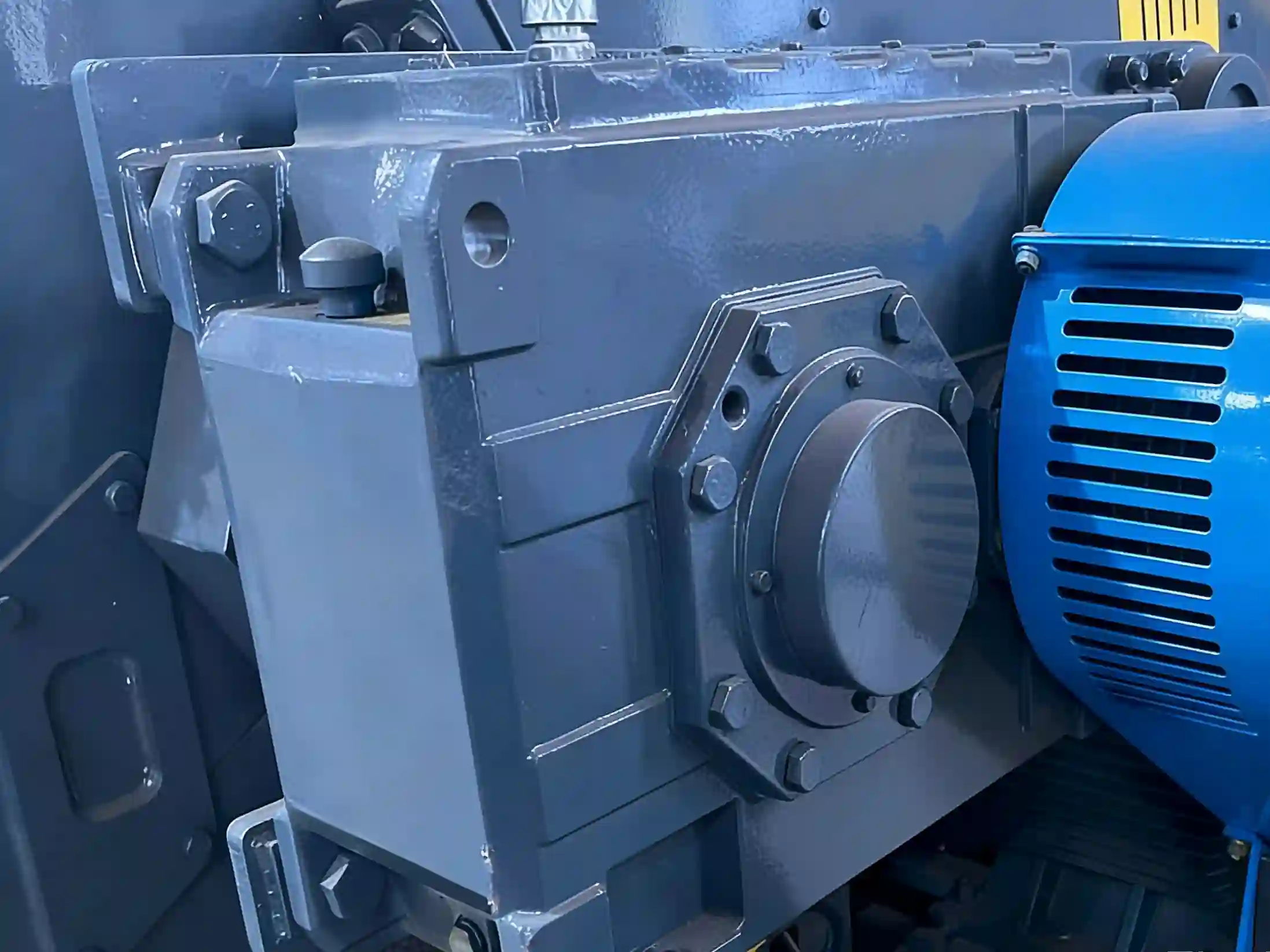

Main Shaft & Gearbox
Robust main shaft and gearbox deliver high torque at low speed for efficient size reduction.

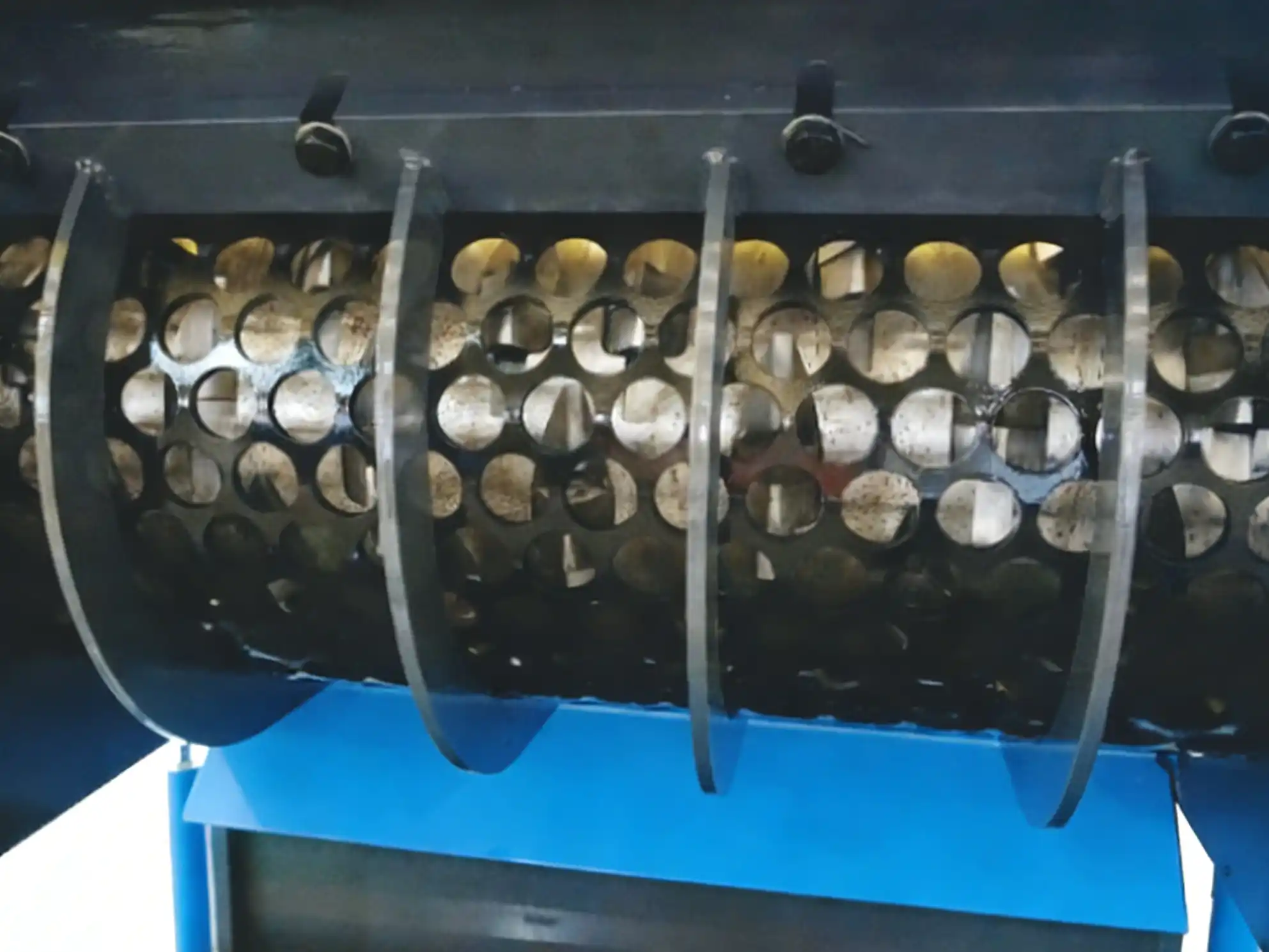

Rotor Knife & Screen
Reversible rotor knives and interchangeable screens for different output sizes and materials.
Hopper & Feeding
Optimized hopper design for safe feeding; conveyor and ram options available.
FAQ
What is the difference between single shaft and double shaft shredders?
Single shaft shredders use one rotating rotor and are ideal for precise output control and uniform particle size. Double shaft shredders use two counter-rotating shafts for higher throughput on bulky items. Choose single shaft for washing lines and extrusion; double shaft for primary reduction of large rigid plastics.
What materials can the single shaft shredder process?
Our single shaft shredder handles rigid plastics (HDPE, PP, PVC), film scrap, purgings, PET bottles and mixed plastic waste. Screen size and blade configuration can be adjusted for your material and desired output.
How do I maintain the shredder blades?
Blades are reversible for extended life. Regular inspection and timely reversal or replacement minimize downtime. We provide spare parts and maintenance guidance for your specific model.
About Us
Gangsu designs and manufactures plastic recycling machinery, from shredding to pelletizing, for customers worldwide.
Why Us
Robust machines, proven process design and responsive support so your line runs reliably and delivers quality output.
Our Service
Installation, training, spare parts and aftersales support to keep your recycling line running at peak performance.
Get a Quote
Tell us your material, capacity and site conditions. We'll propose a solution and a detailed quote.

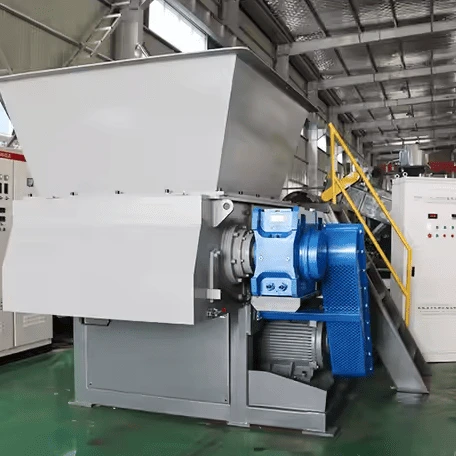

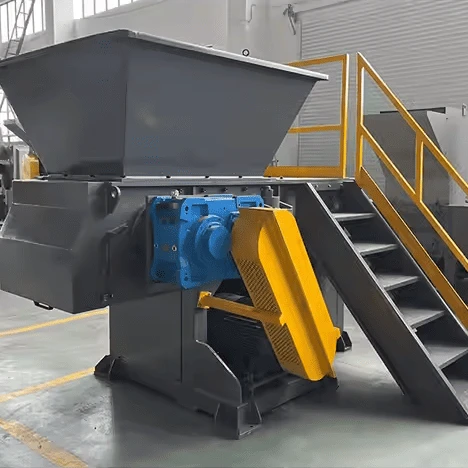

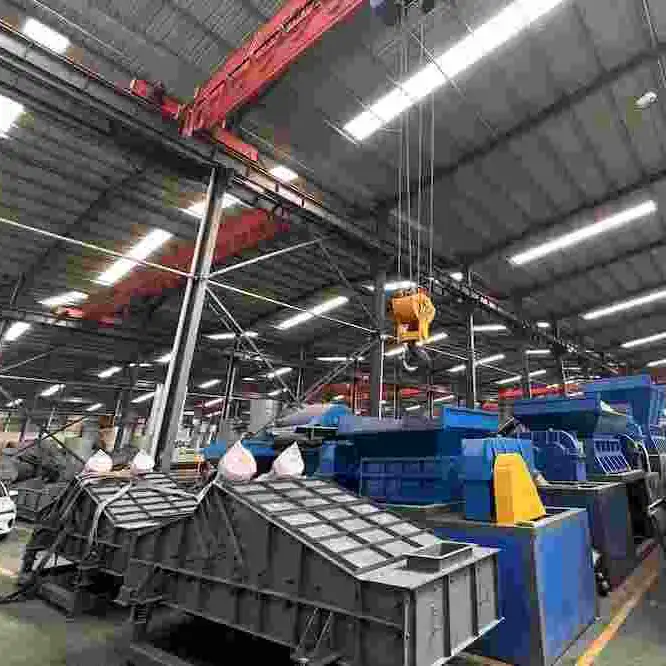

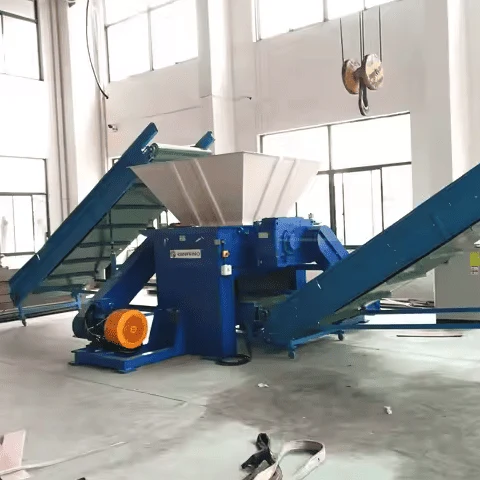

Customer Case
